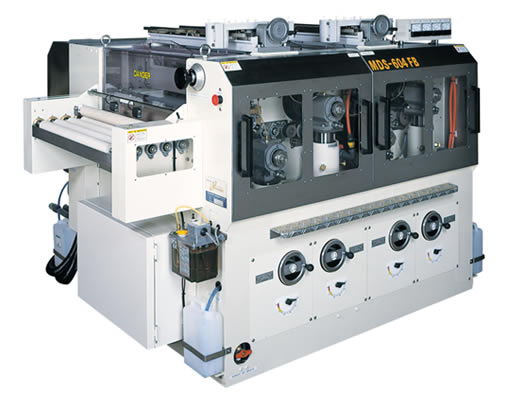

MDS-604FB
Precise Surface Cleaning Machine for Heavy duty grinding Use
Breakthrough Product Lineup to the Buff System Grinding Machine MDS Series@as our long best sales model.
MDS-604FB

Best Solution for Removal Ink
Enhancement of measures against vibration -> Strengthened Frame
The steel plate of the body frame is increased its thickness compared to the conventional Scrubbing Machine to provide improved rigidity.

Increased Diameter
ƒÓ40mm -> ƒÓ45mm

Strengthened Spindle Bearing

Strengthened Spindle Shaft Motor
Standard 2.2kw -> Heavy type 3.7kw


Strengthening of Water Supply
Two-water supply shower pipes for each-spindle
One for Backup Roller Cleaning (Standard)

Standard Equipment -> Step
Improved Maintenance Capability


¥Machine specification
  MDS-604FB(Heavy duty) MDS-604FBR(Standard)
Number of Spindle 4 spindles (2 or 6 is option)
2 up side, 2 down side
4 spindles (2 or 6 is option)
Kind of grinding system Wet type buff roll (or Brush) Wet type buff roll (or Brush)
Work size
Max. Width 600mm
Min. length 220mm
Min. thickness 0.15mm (at total)
Max. thickness 8.0mm
Max. spindle revolution
2000 rpm (Variable)
Spindle oscillate cycle
300 cpm (cycle/min)
Oscillate stroke
8.0mm
Spindle motor 3.7kw x 4 2.2kw x 4
Conveyor motor
0.4kw x 1

Oscillation motor
(Spindle shifting motor)

0.2kw
(40W x 1)

Dressing unit
Marugen Dressing Bar system with Diamond cutter
Total power source 3 phases 200v 18kw 3 phases 200v 10 kw
Machine weight ( unit ) 2000kg 1850kg
Spindle unit weight 70kg 50kg
Material of machine body

Body f‚’ame (Thick steel plate + urethane painting)
Wet part: (Stainless steel palate)

*The specification is subject to change without notice for modification.


¥Standard equipment
ESpindle revolution step less variable control
EConveyor speed step less variable control
EDiamond tool bar dressing unit
ESelf-lubricating auto-system

¥Option
EWork thickness measuring Unit
EAutomatic load pressure control
EApplicable to Thin Plate system
EElectric sliding dresser system
ECeramic coating backup roll
